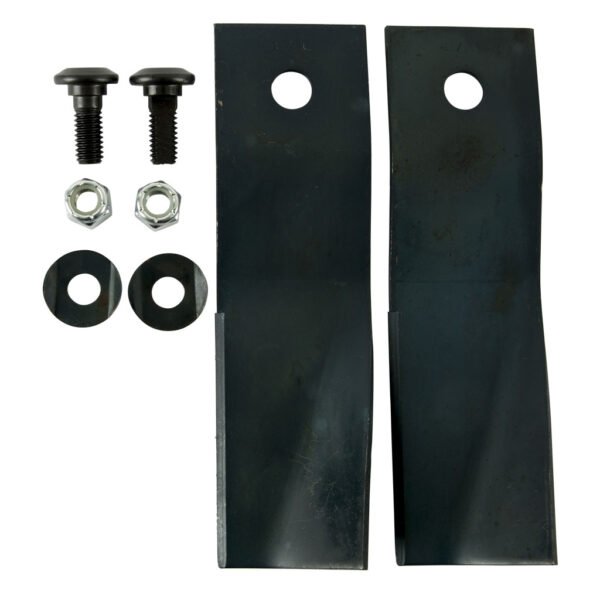

Part Number: BRC5543
Description: Non-Genuine Cox, Cub Cadet, Husqvarna, Jetfast – SupaSwift, John Deere, Massey
Ferguson Selected 19″, 21″, 24″, 28″, 36″, 38″, 40″, 42″, 46″, 48″, 50″ And 54″ Cut
Domestic, Slasher, Ride-On And ZTR Swing Back Blade And Bolt Set, Skin Packed For
Retail Display
Replaces OEM: Cox SKIT33, SKIT33N
Jetfast – SupaSwift SB501680 (nuts), SB535184 (blades), SB535185 (bolts), SB580087
(tension washers)
MTD 742-1921
Hole Size: (inches) 1/2″
Hole Size: (mm) 12.7 mm
Length: (in): 5 15/16″
Length: (mm): 150.81 mm
Width: (inches) 1.968″
Width: (mm) 50 mm
Fits: 28” (711 mm) cut Cox selected models including but not limited to selected Orion,
Scout and Stockman ride-on lawn mower models.
Fits: 42″ (1067 mm) cut Cox selected models including but not limited to Cruiser CZ2142
(model A12011H) zero turn radius (ZTR) ride-on models.
Fits: 50″ (1270 mm) cut *Cub Cadet selected models including but not limited to Z Force
Decks, RZT50 (model 17A12ACP709, 17 hp year 2007) ZTR, Cub Cadet (model 17AF9BK330
20 hp Hydro year 2008) ride-on lawn mower models, i1050 (model 17AF9BKP330 20 hp
year 2008) Z Turn ride-on lawn mower models when converting from 6-point star
centre hole bar blades to swing back blades, (please refer to the product note
below for a full components required list).
Product Note: *When used in conjunction with our BRC5543 x 3 qty swing back blade
and bolt combo packs and BLH7882 x 3 qty stepped, 6-point star centre hole swing
back blade conversion carrier bars. For a standard bar blade option use our BLR7572
x 3 qty, for a Gator Mulcher bar blade option use our BLR6925 x 3 qty.
Fits: 36″ (914 mm) cut *Husqvarna selected ride-on lawn mower models when converting from
5-point star centre hole bar blades to swing back blades (please refer to the
product note below for a full components required list).
Product Note: *When used in conjunction with our BRC5543 x 2 qty swing back blade
and bolt combo packs and BLH5788 x 2 qty flat, 5-point star centre hole swing back
blade conversion carrier bars or our BLH409 x 2 qty stepped, 5-point star centre
hole swing back blade conversion carrier bars.
Fits: 38″ (965 mm) cut *Husqvarna selected ride-on lawn mower models when converting from
5-point star centre hole bar blades to swing back blades (please refer to the
product note below for a full components required list).
Product Note: *When used in conjunction with our BRC5543 x 2 qty swing back blade
and bolt combo packs and BLH5788 x 2 qty flat, 5-point star centre hole swing back
blade conversion carrier bars or our BLH409 x 2 qty stepped, 5-point star centre
hole swing back blade conversion carrier bars.
Fits: 42″ (1067 mm) cut *Husqvarna selected ride-on lawn mower models when converting
from 5-point star centre hole bar blades to swing back blades (please refer to the
product note below for a full components required list).
Product Note: *When used in conjunction with our BRC5543 x 2 qty swing back blade
and bolt combo packs and BLH5788 x 2 qty flat, 5-point star centre hole swing back
blade conversion carrier bars or our BLH409 x 2 qty stepped, 5-point star centre
hole swing back blade conversion carrier bars.
Fits: 46″ (1168 mm) cut *Husqvarna selected ride-on lawn mower models (for 3 blade 46″
cut deck models only) when converting from 5-point star centre hole bar blades to
swing back blades (please refer to the product note below for a full components
required list).
Product Note: *When used in conjunction with our BRC5543 x 3 qty swing back blade
and bolt combo packs and BLH6477 x 3 qty flat, 5-point star centre hole swing back
blade conversion carrier bars. ***Please note for 46″ cut 2 blade deck models only
use our BRC5544 x 2 qty blade and bolt combo packs and BLH5788 x 2 qty flat,
5-point star centre hole conversion carrier bars.***
Fits: 48″ (1220 mm) cut *Husqvarna selected ride-on lawn mower models when converting
from 5-point star centre hole bar blades to swing back blades (please refer to the
product note below for a full components required list).
Product Note: *When used in conjunction with our BRC5543 x 3 qty swing back blade
and bolt combo packs and BLH6477 x 3 qty flat, 5-point star centre hole swing back
blade conversion carrier bars.
Fits: 50″ (1270 mm) cut *Husqvarna selected ride-on lawn mower models when converting
from 5-point star centre hole bar blades to swing back blades (please refer to the
product note below for a full components required list).
Product Note: *When used in conjunction with our BRC5543 x 3 qty swing back blade
and bolt combo packs and BLH6477 x 3 qty flat, 5-point star centre hole swing back
blade conversion carrier bars.
Fits: 54″ (1372 mm) cut *Husqvarna selected ride-on lawn mower models when converting
from 5-point star centre hole bar blades to swing back blades (please refer to the
product note below for a full components required list).
Product Note: *When used in conjunction with our BRC5543 x 3 qty swing back blade
and bolt combo packs and BLH409 x 3 qty stepped, 5-point star centre hole swing
back blade conversion carrier bars.
Fits: 24” (610 mm) cut Jetfast SupaSwift Supa Bob 675WD side discharge slasher models.
Fits: 38″ (965 mm) cut *John Deere selected ride-on lawn mower models including but not
limited to X300 model zero turn radius (ZTR) ride-on models when converting from
7-point star centre hole bar blades to swing back blades (please refer to the
product note below for a full components required list).
Product Note: *When used in conjunction with our BRC5543 x 2 qty swing back blade
and bolt combo packs and BLH6899 x 2 qty flat, 7-point star centre hole swing back
blade conversion carrier bars.
Fits: 42″ (1067 mm) cut *John Deere selected models including but not limited to 102,
105, 115, 125, 135, LA100, LA110, LA120, X110 and X120 ride-on lawn mower models
and Z225 EZtrak Residential zero turn radius (ZTR) ride-on models when converting
from 7-point star centre hole bar blades to swing back blades (please refer to the
product note below for a full components required list).
Product Note: *When used in conjunction with our BRC5543 x 2 qty swing back blade
and bolt combo packs and BLH6899 x 2 qty flat, 7-point star centre hole swing back
blade conversion carrier bars.
Fits: 48″ (1220 mm) cut *John Deere selected models including but not limited to 145,
155C, LA130, LA140, X140 ride-on lawn mower models and Z245 EZtrak Residential zero
turn radius (ZTR) ride-on models when converting from 7-point star centre hole bar
blades to swing back blades (please refer to the product note below for a full
components required list).
Product Note: *When used in conjunction with our BRC5543 x 3 qty swing back blade
and bolt combo packs and BLH6899 x 3 qty flat, 7-point star centre hole swing back
blade conversion carrier bars.
Fits: 50″ (127 cm) cut *Massey Ferguson selected models including but not limited to MF
50-23 SD ride-on lawn mower models and MF 50-22 ZT zero turn radius (ZTR) ride-on
models when converting from 6-point star centre hole bar blades to swing back
blades (please refer to the product note below for a full components required list)
.
Product Note: *When used in conjunction with our BRC5543 x 3 qty swing back blade
and bolt combo packs and BLH7882 x 3 qty stepped, 6-point star centre hole swing
back blade conversion carrier bars. For a standard bar blade option use our BLR7572
x 3 qty, for a Gator Mulcher bar blade option use our BLR6925 x 3 qty.
Fits: 19” (483 mm) cut MTD selected domestic walk-behind lawn mower models fitted with
a swing back blade carrier bar.
Fits: 21” (533 mm) cut MTD selected domestic walk-behind lawn mower models fitted with
a swing back blade carrier bar.
Fits: 38″ (965 mm) cut *MTD selected ride-on lawn mower models when converting from
6-point star centre hole bar blades to swing back blades (please refer to the
product note below for a full components required list).
Product Note: *When used in conjunction with our BRC5543 x 2 qty swing back blade
and bolt combo packs and BLH5826 x 2 qty flat, 6-point star centre hole swing back
blade conversion carrier bars.
Fits: 42″ (1067 mm) cut *MTD selected ride-on lawn mower models when converting from
6-point star centre hole bar blades to swing back blades (please refer to the
product note below for a full components required list).
Product Note: *When used in conjunction with our BRC5543 x 2 qty swing back blade
and bolt combo packs and BLH5826 x 2 qty flat, 6-point star centre hole swing back
blade conversion carrier bars.
Fits: 50″ (1270 mm) cut *MTD selected models including but not limited to MTD Yardman
deep deck 2004 models onwards and 13AP604P371 (23 hp, Autodrive year 2008) ride-on
lawn mower models when converting from 6-point star centre hole bar blades to swing
back blades (please refer to the product note below for a full components required
list).
Product Note: *When used in conjunction with our BRC5543 x 3 qty swing back blade
and bolt combo packs and BLH7882 x 3 qty stepped, 6-point star centre hole swing
back blade conversion carrier bars. For a standard bar blade option use our BLR7572
x 3 qty, for a Gator Mulcher bar blade option use our BLR6925 x 3 qty.
Fits: 38″ (965 mm) cut *Murray selected ride-on lawn mower models when converting from
round centre hole bar blades to swing back blades (please refer to the product note
below for a full components required list).
Product Note: *When used in conjunction with our BRC5543 x 2 qty swing back blade
and bolt combo packs and BLH6480 x 2 qty flat, round centre hole swing back blade
conversion carrier bars.
Fits: 40″ (1016 mm) cut *Murray selected ride-on lawn mower models when converting from
round centre hole bar blades to swing back blades (please refer to the product note
below for a full components required list).
Product Note: *When used in conjunction with our BRC5543 x 2 qty swing back blade
and bolt combo packs and BLH6480 x 2 qty flat, round centre hole swing back blade
conversion carrier bars.
Fits: 42″ (1067 mm) cut *Murray selected ride-on lawn mower models when converting from
round centre hole bar blades to swing back blades (please refer to the product note
below for a full components required list).
Product Note: *When used in conjunction with our BRC5543 x 2 qty swing back blade
and bolt combo packs and BLH6480 x 2 qty flat, round centre hole swing back blade
conversion carrier bars.
Fits: 42″ (1067 mm) cut *TORO selected models including but not limited to RZT420H (years
2008 to 2009), TimeCutter Z420 (year 2005), Z4200 (years 2007 to 2010), Z4202
(years 2009 to 2010), Z530 (years 2006 to 2007 models) zero turn radius (ZTR)
ride-on models when converting from round centre hole bar blades to swing back
blades (please refer to the product note below for a full components required list)
.
Product Note: *When used in conjunction with our BRC5543 x 2 qty swing back blade
and bolt combo packs and BLH7863 x 2 qty flat, round centre hole swing back blade
conversion carrier bars. For a standard bar blade option use our BLR7544 x 2 qty,
for a Gator Mulcher bar blade option use our BLR7790 x 2 qty.
Fits: 50″ (1270 mm) cut *TORO selected models including but not limited to TimeCutter Z
models including Z5000, Z5020, Z5030, Z5035, Z5040 and Z5060 zero turn radius (ZTR)
ride-on models when converting from round centre hole bar blades to swing back
blades (please refer to the product note below for a full components required
list).
Product Note: *When used in conjunction with our BRC5543 x 3 qty swing back blade
and bolt combo packs and BLH7861 x 3 qty flat, round centre hole swing back blade
conversion carrier bars. For a standard bar blade option use our BLR7599 x 3 qty,
for a Gator Mulcher bar blade option use our BLR7820 x 3 qty.
Features: Heavy duty 3 mm thick stepped and high fluted blades, right hand cut
Suits selected OEM production line machines
Also suitable for use with nine GA swing back blade conversion carrier bars
Includes matching bolt set
Skin packed for retail display
Fitting diagrams and instructions on back of pack
Box Quantity: 30 Pairs
Standard Pack Quantity: 1 Pair
Note: All length measurements are from the centre of bolt hole to end of blade. Sold in
sets of two (2) unless otherwise stated.
Brand: Cox – Non Genuine, Jetfast – Non Genuine, MTD – Non Genuine, UTA,
Product Line: Blade and bolt set – domestic, blade and bolt set – ride-on, domestic blade and
bolt set, swing back blade and bolt set, ride-on swing back blade and bolt set,
