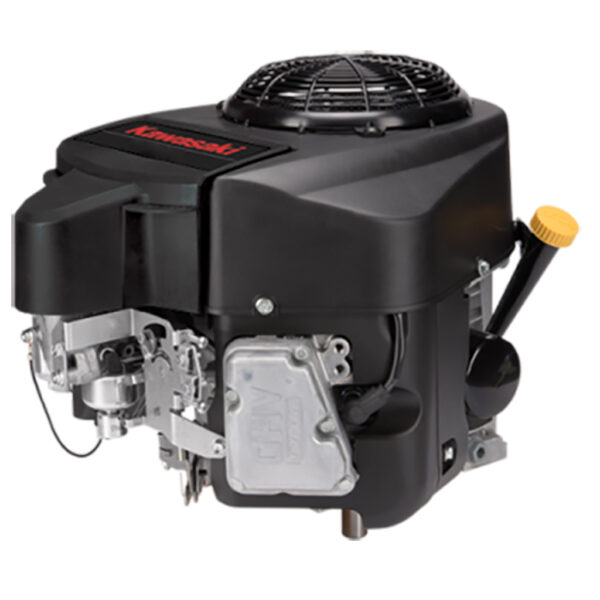

Kawasaki FR691V-DS18S Engine

$2,750.00

SKU: ENG8486

In stock

Calculate shipping price

Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.

Kawasaki FR691V-CS18-S, 23 hp (17.2 kW) Vertical Shaft Engine With A 1 1/8″ x 100mm Crankshaft
Overhead V-valve 90° V-twin.



Single-stage air filter .



Pressurized lubrication system.



Electronic spark ignition.



Automatic compression release.



Internally vented carburetor with fuel shut-off solenoid.



Cast-iron cylinder liners.



Rotating metal grass chopper screen.

Air cooled, 90 degree V-twin, normally aspirated petrol engine.

726 cc

23 hp (17.2 kW) at 3,600 RPM (Please Note: Horsepower rating as tested to SAE J1995



Standards.)

Two, 90° V-twin.

Cast-iron cylinder liners.

3.1 x 3.0 in. (78 x 76mm).

726 cc (44.3 cu. in.).

8.2:1

Air cooled. Fly-wheel fan.

Maximum Power 23 hp (17.2 kW) at 3,600 RPM (Please Note: Horsepower rating as tested to SAE J1995 Standards.)

Maximum Torque 39.3 ft-lbs (53.2 N·m) at 2,200 RPM.

Automatic compression release.

Electronic spark ignition.

1 1/8″ x 100 mm (28 X 100mm)

Cartridge air filter.

12-volt.

12-volt.

No.

Unleaded fuel – maximum of 10% ethanol in fuel.

Yes, replaceable, automotive-type.

Mechanical.

Yes, spin-on engine oil filter.

Oil Capacity w/filter 2.1 U.S. qt ( 2.0 litres).

88.2 lbs.

40 kg.

*PLEASE NOTE: Horsepower rating as tested to SAE J1995 Standards.*
