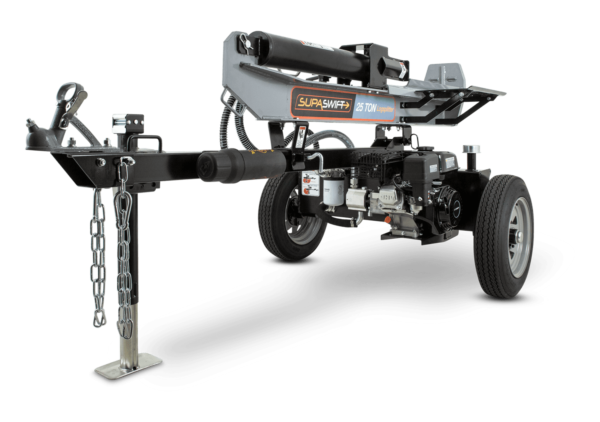

SupaSwift 525ALS 25 Ton Log Splitter

$2,799.00

SKU: SSU525ALS

In stock

Calculate shipping price

Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.

  • Domestic Warranty: 3 Year Domestic Warranty

  • Commercial Warranty: 3 Month Commercial Warranty

  • Hire/Rental Warranty: 3 Month Hire/Rental Warranty

  • Engine: SupaSwift 6.5 hp (196 cc) single cylinder, horizontal shaft OHV engine

  • Hydraulic Ram Cylinder: (mm): Outside: 114.3 mm x 609.6 mm stroke / Inside: 101.6 mm x 622.3 mm stroke

  • Hydraulic Tank Capacity: (L): 25.5 litres

  • Maximum Log Length: (mm): 25″ / 635 mm

  • Pump: (L): Two stage pump 13 GPM (49.21 litres per minute)

  • Tow Hitch: (mm): *2″ (50 mm) ball hitch with safety chains – Aust style trailer bail hitch

  • Wedge: (mm): 8.5 ” (215.9 mm) High angled heat treated steel

  • Operating Position: Horizontal or vertical operation

  • Capacity: 25 Tons of splitting force

  • Valve: Manually activated auto return valve with adjustable detent

  • Cycle Time: 10.9 seconds (down and back)

  • Wheels / Tyres: *D.O.T approved 12″ x 4.80″ multi lug trailer wheel

  • Beam (mm): 8.5″ Foot plate / 215.9 mm Foot plate

  • Ram Size: 1.75″ (44.45 mm) Dia
