SupaSwift SSV450F1 Engine


SKU: ENG8380

In stock

Calculate shipping price

Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.

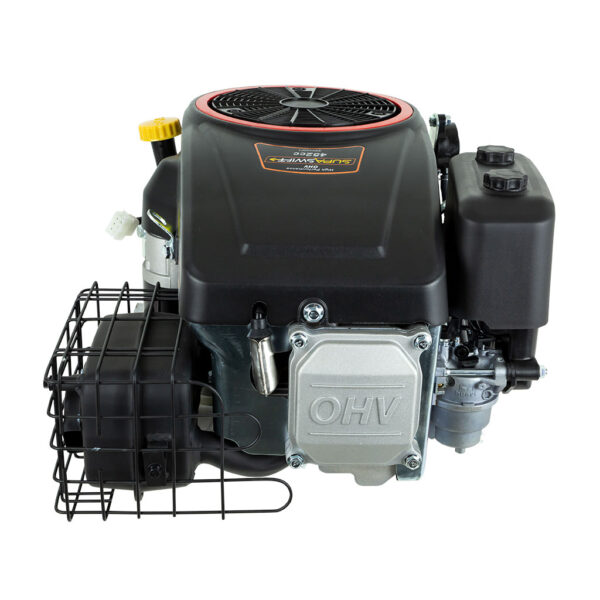

Description: SupaSwift SSV450F1, 9.5 kw, 452 cc Single Cylinder OHV Vertical Shaft Engine
Editorial: The SupaSwift SSV450F1 is a durable and reliable 9.5 kW single cylinder OHV engine
suitable for a variety of outdoor power equipment including ride-on lawn mowers.
With premium features such as a forged crankshaft. metal cam shaft, cast iron
cylinder liner, OHV design and an oil filter this engine is ready to provide many
years of trouble free service.

Features: Cast-Iron cylinder sleeve.
Forged and carefully balanced crankshaft.
Metal camshaft.
OHV design.
Oil filter.
Proven reliability.
Conforms to Euro 5 Standards.
Suitable for ride-on mowers.

Engine: SupaSwift SSV450F1 (V450-F1).
Type: Air cooled, single cylinder OHV, vertical shaft, normally aspirated 4 stroke petrol
Displacement: 452 cc.
Bore x Stroke: 92mm x 68mm.
Cylinder: Single cylinder with cast -iron cylinder sleeve.
Compression Ratio: 8.7 : 1.
Net Power: 9.5 kW @ 3600 rpm. (Measured in accordance with SAE J1349)
Net Torque: 28 Nm @ 2600 rpm. (Measured in accordance with SAE J1349)
Engine (cc): 452 cc.
Crankshaft: Forged crankshaft.
Crankshaft Diameter: (inches) 1″
Crankshaft Diameter: (mm) 25.4 mm
PTO Shaft Type: 1″, (25.4 mm) diameter, 3.13″ (79.5 mm) long, with parallel keyway.
PTO Shaft Rotation: Anti-clockwise (from the PTO side).
Cooling: Air cooled.
Governor: Centrifugal mass type.
Carburettor: Butterfly type.
Choke: Manual
Idle Speed: 1850 ± 150rpm / min
Starter: Electric start.
Ignition: Transistorised magneto ignition.
Lubrication: Splash and pressure lubrication system.
Oil Filter: Yes
Oil Capacity: 1.2 Litres (Please use 10W/40 Oil).
Fuel: Unleaded (minimum of 90 octane)
Fuel Filter: Yes (Inline type fuel filter).
Air Filter: Pleated paper cartridge type with foam wrap pre-filter.
Exhaust/Muffler: Yes, includes muffler and guard.
Dry Weight: (lb) 68.34 lb.
Dry Weight: (kg) 31 kg
International Standard: Conforms to EU5.
